RF + A/V

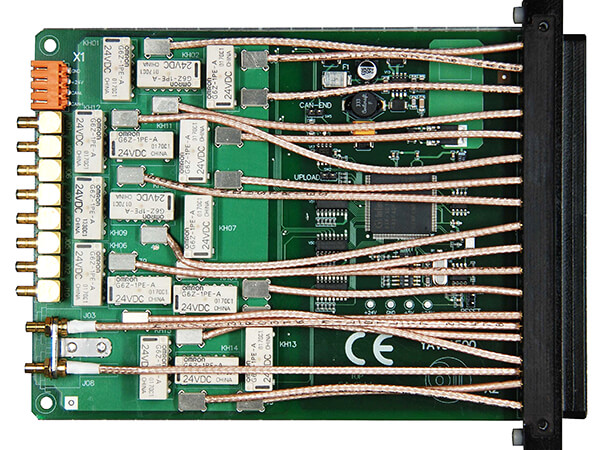

2,5 GHz 50 Ohm SMB Multiplexer

YAV91500

  • 5x (1x4) Mux. + 2x Pass through
  • 30 V AC / DC, 10 W max
  • Max. Leistung: 500mA
  • Signal-Reflektierend


2,5-GHz 50-Ohm Config. Multiplexer

YAVAL022

  • Self test capacity
  • 5x (1x4) Mux. +2x Pass through
  • 30VAC/DC, 10W Max
  • Max carry current 500mA
  • Reflective


2,5 GHz 50 Ohm SMB Multiplexer

YAV91501

  • 2x (1x8) Mux. + 1x2 + 2x Pass through
  • 30 V AC / DC, 10 W max
  • Max. Leistung: 500mA
  • Signal-Reflektierend
  • CAN Bus gesteuert

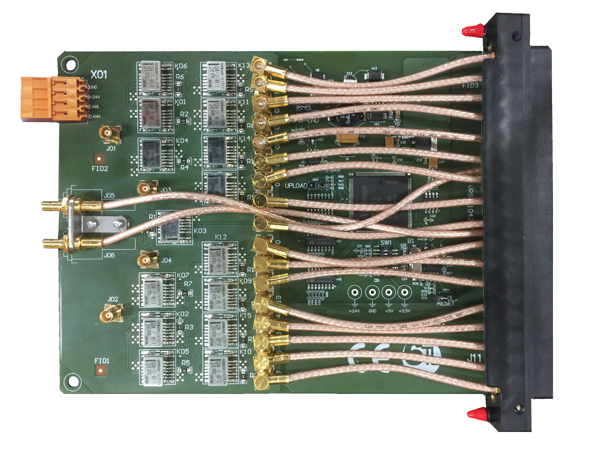

2,5 GHz 50 Ohm SMB Multiplexer

YAV92501

  • 2x (1x8) Mux. + 1x2 +2x Pass through
  • 30VAC/DC, 10W Max
  • Max carry current 500mA
  • CAN bus gesteuert

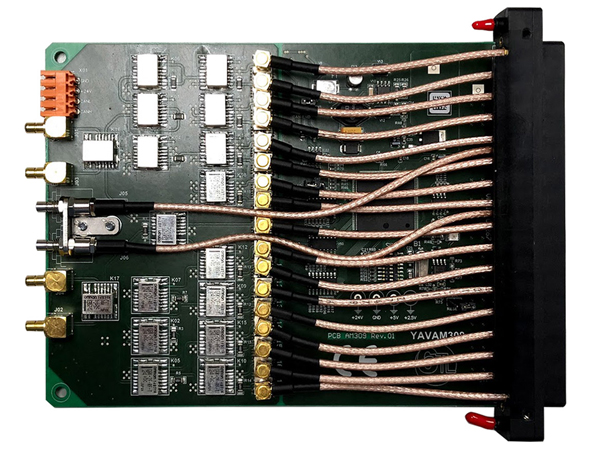

2,5 GHz 50R 2x (1 to 8) Multiplexer

YAVAM308

  • Self test capacity
  • 5x (1x4) Mux. +2x Pass through
  • 30VAC/DC, 10W Max
  • Max carry current 500mA
  • Reflective


2,5 GHz 75 Ohm SMB Multiplexer

YAV91750

  • 5x (1x4) Mux. + 2x Pass through
  • 30 V AC / DC, 10 W max
  • Max. Leistung: 500mA
  • Signal-Reflektierend
  • CAN Bus gesteuert


2,5GHz 6x (1 to 4) MUX

YAVAL034

  • 6x 1 to 4 Reflective
  • MMCX Connectors
  • Front or Back cables trucking
  • CAN bus gesteuert


2,5GHz 4x (1 to 8) MUX

YAVAL040

  • 4x 1 to 8 Reflective
  • MMCX Connectors
  • Front or Back cables trucking
  • CAN bus gesteuert

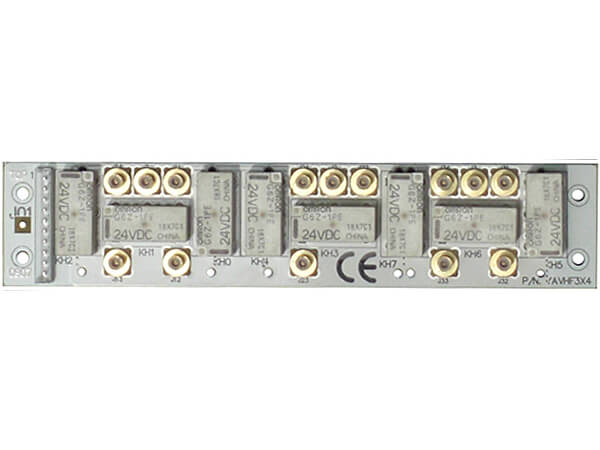

2,5 GHz 50 oder 75 Ohm SMB Relias Kontrollierter Multiplexer

YAVHF3X4 / YAVHF3X450

  • 2,5 GHz 50 Ohm SMB
  • 1x9 oder 2x4 + 1x3 Relais
  • 30 V AC / DC, 10 W max
  • Max. Leistung: 500mA
  • Signal-Reflektierend


2,5 GHz 50 or 75 Ohm SMB Multiplexer

YAVHF3X4C / YAVHF3X4C50

  • 1x9 or 2x4 + 1x3 relays SMB 50 Ohm coaxial switching
  • 30VAC/DC, 10W Max
  • Max carry current 500mA
  • Reflective
  • CAN bus gesteuert

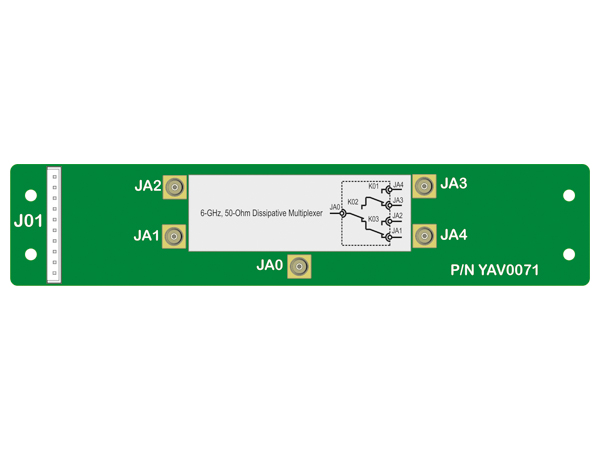

6 GHz 50 Ohm relays controlled multiplexer

YAV90071

  • 6-GHz 50 Ohm MCX
  • 1 to 4 Channels
  • 30VAC/DC, 1W Max.
  • Max carry current 310mA
  • Relay coil voltage 24VDC
  • Absorptive
