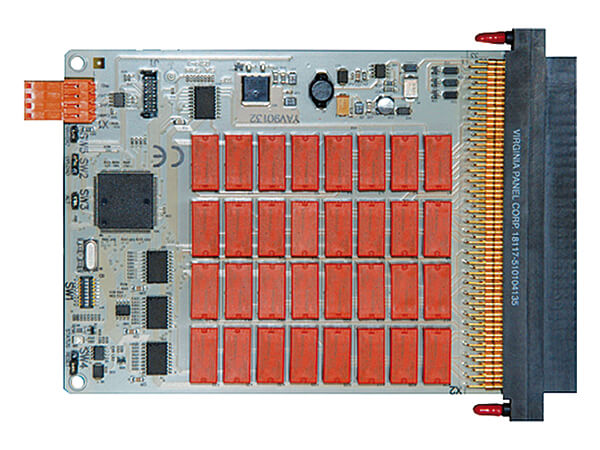

Schalter

32-Kanal, 5A Relais

YAV90132

  • 28 SPDT-Relais
  • Mux- 1x 4 SPST-Relais
  • 5A / 240VAC
  • Max. Schaltung: 1250 VA
  • CAN Bus gesteuert

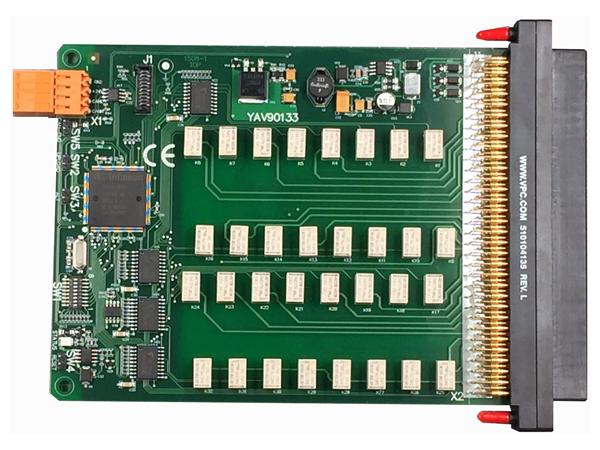

32-Channel, Low signal

YAV90133

  • 28 SPDT relays
  • Mux- 1x 4 SPST relays
  • 2A / 240VAC
  • Max. switching 1250 VA
  • CAN bus gesteuert

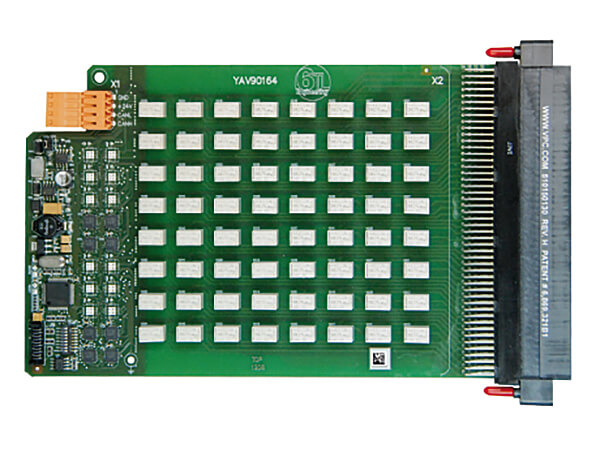

64-Kanal, 2A Relais

YAV90164

  • 64 SPDT-Relais
  • Mux- 1x 4 SPST-Relais
  • 2A / 250VAC
  • Max. Schaltung: 62,5 VA
  • CAN Bus gesteuert

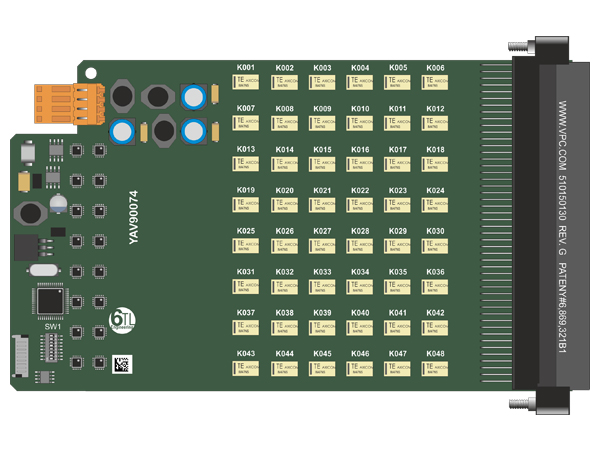

48-Channel 2A Shielded SPDT relays

YAV91074

  • 48 low noise relays
  • 1A/100VAC
  • Max. switching 62,5 VA
  • CAN bus gesteuert

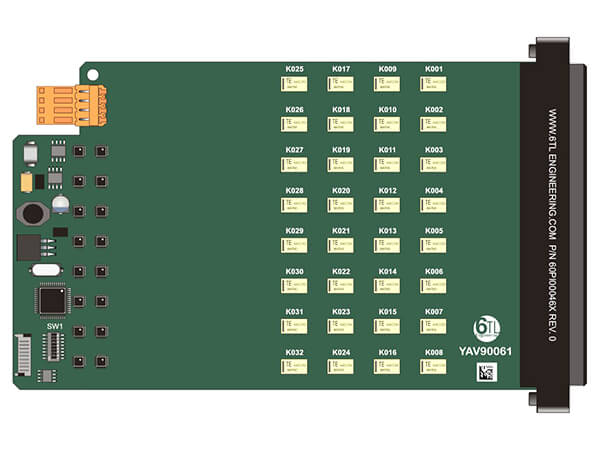

32-Kanal, 2A Relais

YAV90061

  • 32 DPDT-Relais
  • 2A / 250VAC
  • Max. Schaltung: 62,5 VA
  • CAN Bus gesteuert

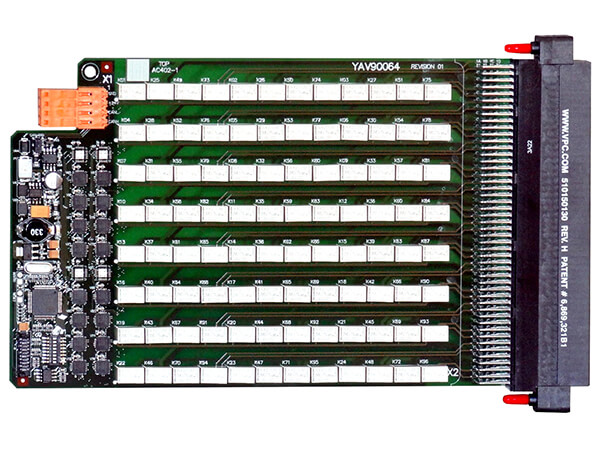

96-Kanal, 2A SPST

YAV90064

  • 96 SPST-Relais
  • 2A / 250VAC
  • Max. Schaltung: 62,5 VA
  • CAN Bus gesteuert

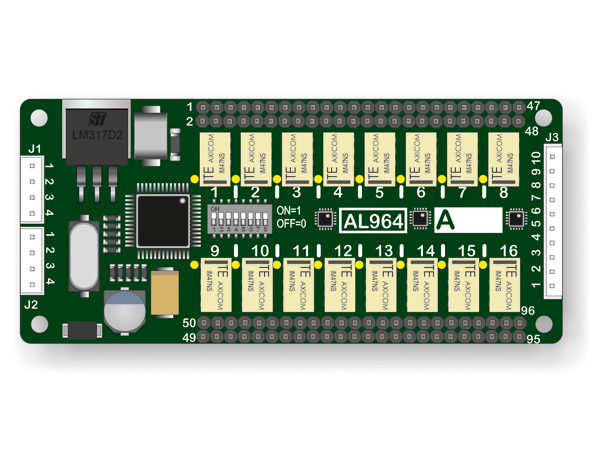

16x DPDT CAN Contr. Relays

YAVAL964

  • Small size (WxD): 100x45mm
  • 16 channels DPDT 2A
  • CAN bus control and 24VDC (J1 and J2 connectors to chain multiple cards).
  • Access to Relay-pins through wire-wrap Pin Header.
  • Relays number Pin Location printed on PCB so that operator can connect easily
  • Address selection DIP Switch on top layer.
  • LED led monitoring
