Interface Systems

We produce interfaces blocks and contact pins from all major manufacturers: TTI Testron, Pylon, GenRad, Teradyne and HP.

Legacy systems and single contacts (signal, coaxial or high current) are also available.

Features:

  • Pylon interface modules (Signal, PWR, Koax)
  • „HP“ PP Contacts (Plastic / Steel)
  • Teradyne (320, 640, 1280)
  • All standard interface contacts

Signal GenRad

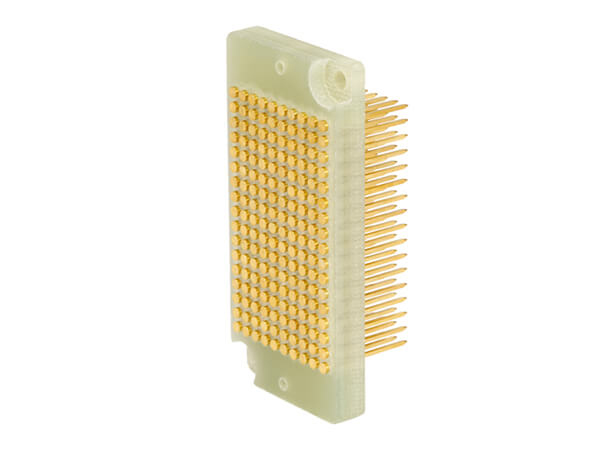

ITA GenRad+R&S 170pol. Standard WW-Pfosten aligned

906070

Description:
ITA Block 170 Pos. fully loaded with WW-polls aligned

Mating Module:
906070IRS

Contacts used:
300410 Interface contact with flat head, BeCu Gold plated up to 3 AMP

Download Datasheet 906070

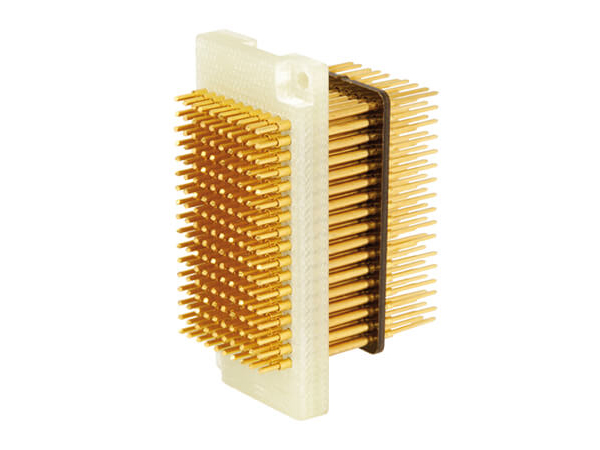

906070IRS Systemblock R&S 170 Pos. receptacles aligned

906070IRS

Description:
RCVR Block 170 Pos. fully loaded with FKS and WW receptacles, aligned.

Mating Module:
906070RS + 906070

Contacts used:
2B11-102-1G4.4RS triangular FKS and GLR2W receptacle, BeCu cold plated.

Download Datasheet 906070IRS


Signal R+S

ITA R&S 170pol. equipped with inner cone and with small well

906070RS

Description:
ITA Block 170 Pos. fully loaded with WW-Polls aligned

Mating module:
906070IRS

Contacts used:
300400 interface contact with well, BeCu gold plated up to 3 AMP

Download Datasheet 906070RS


906070IRS Systemblock R&S 170 Pos. receptacles aligned

906070IRS

Description:
RCVR Block 170 Pos. fully loaded with FKS and WW receptacles, aligned.

Mating Module:
906070RS + 906070

Contacts used:
2B11-102-1G4.4RS triangular FKS and GLR2W receptacle, BeCu cold plated.

Download Datasheet 906070IRS


Pneumatic

ITA PNEU 8 pos. fully loaded male

906070PBB-8

Description:
ITA Block 8 Pos. fully loaded with pneumatic male.

Mating module:
906070PSB-8

Contact used:
KSVPK-3 pneumatic plug male, gold plated

Download Datasheet 906070PBB-8


RCVR PNEU 8 pos. fully loaded female

906070PSB-8

Description:
RCVR Block 8 Pos. fully loaded with pneumatic female.

Mating module:
906070PBB-8

Contacts used:
KDVPK-3 Socket pneumatic female, gold-plated

Download Datasheet 906070PSB-8


High current

ITA High current PWR 60 contacts fully loaded

9060ITA-60HC

Description:
ITA Block 60 Pos. fully loaded with HC contact flat head.

Mating module:
9060RCVR-60HC

Contact used:
GPP95HC contact BeCu gold plated.

Download Datasheet 9060ITA-60HC


RCVR R&S High current PWR 60 contacts fully loaded with 3B04

9060RCVR-60HC

Description:
RCVR Block 60 Pos. fully loaded with FKS contact and receptacle.

Mating Module:
9060ITA-60HC

Contacts used:
GLP3B04 FKS round head and GLR3S5.84 receptacle, BeCu gold plated.

Download Datasheet 9060RCVR-60HC


Mini Power Koax

ITA 28 pos. empty for Mini Power, Koax, Pneu or POF/LWL

906028ITA-MINI-CX-HC

Description:
ITA Block 28 Pos. EMPTY

Mating module:
906028RCVR-MINI-CX-HC

Contacts used:
Empty, for Mini Power, Coax, Pneumatics and POF.
Please contact us for more information.

Download Datasheet 906028ITA-MINI-CX-HC


RCVR 28 pos. empty for Mini Power, Koax, Pneu or POF/LWL

906028RCVR-MINI-CX-HC

Description:
RCVR Block 28 Pos. EMPTY

Mating module:
906028ITA-MINI-CX-HC

Contacts used:
Empty, for Mini Power, Coax, Pneumatics and POF.
Please contact us for more information.

Download Datasheet 906028RCVR-MINI-CX-HC
